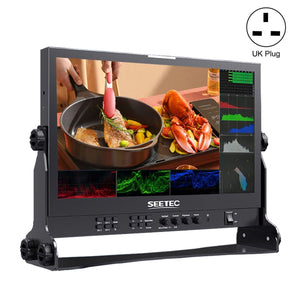

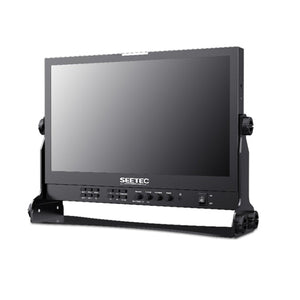

Elevate your production quality with the SEETEC ATEM156S 15.6 inch Multi-camera Broadcast Monitor. This monitor is packed with features and precise specifications designed to enhance your broadcasting experience.

Key Features:

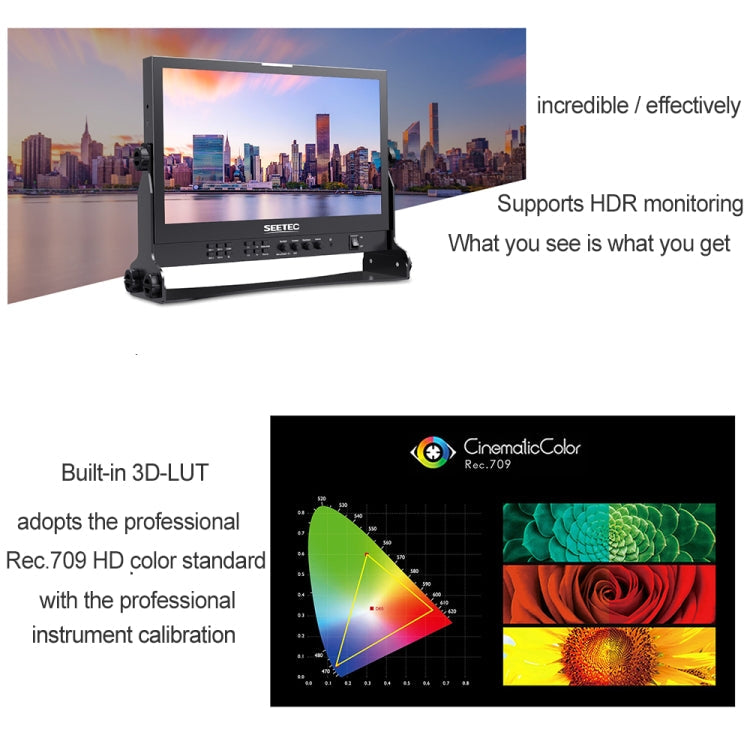

• Built-in and User 3DLUTs: Enjoy built-in Multi camera Delog LUTs and the ability to upload up to 36 User 3DLUTs via USB, providing unmatched color control and accuracy.
• Support for Various Protocols: Seamless integration into your existing setup with support for GPI control, dynamic IMD, TSL 3.1/4.0, IMAGE VIDEO protocol, and TALLY.

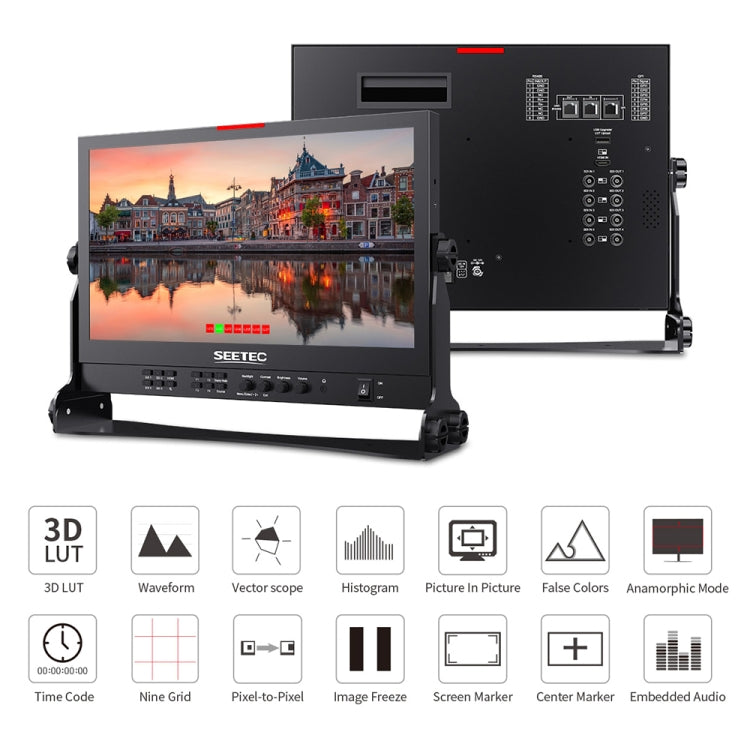

• Advanced Display Features: Includes Histogram, HDR, Focus Assist, False Colors, Zebra, and Timecode Display for precise monitoring and image quality.
• Multiple Display Modes: Versatility in monitoring options with support for Picture in Picture, Under Scan, Over Scan, Anamorphic Mode, Pixel to Pixel, Center Marker, Safety Marker, Marker Mat, All Waves, Parade, and Image Freeze.

Specifications:

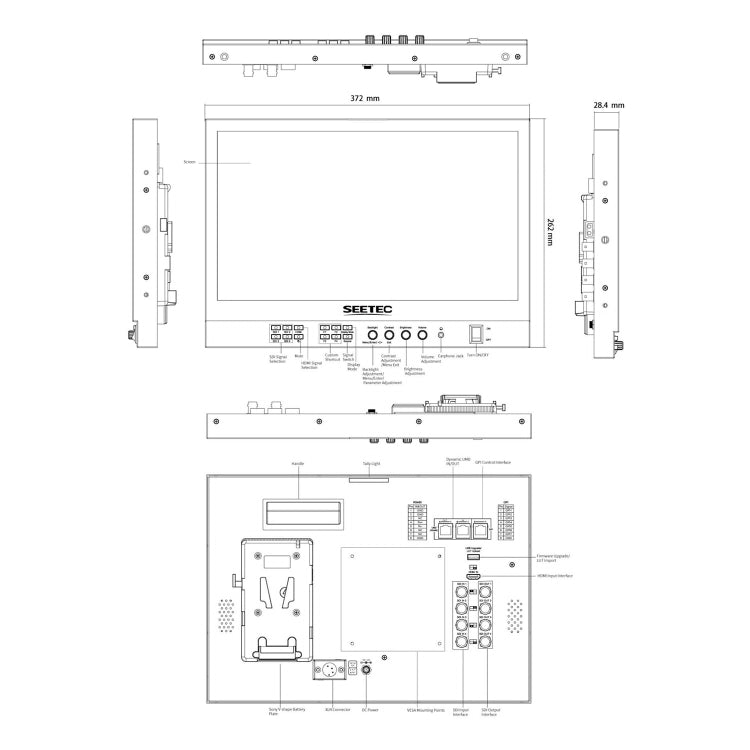

• Display Screen: 15.6 inch IPS with 1920 x 1080 resolution and 16:9 aspect ratio for a clear and detailed viewing experience.

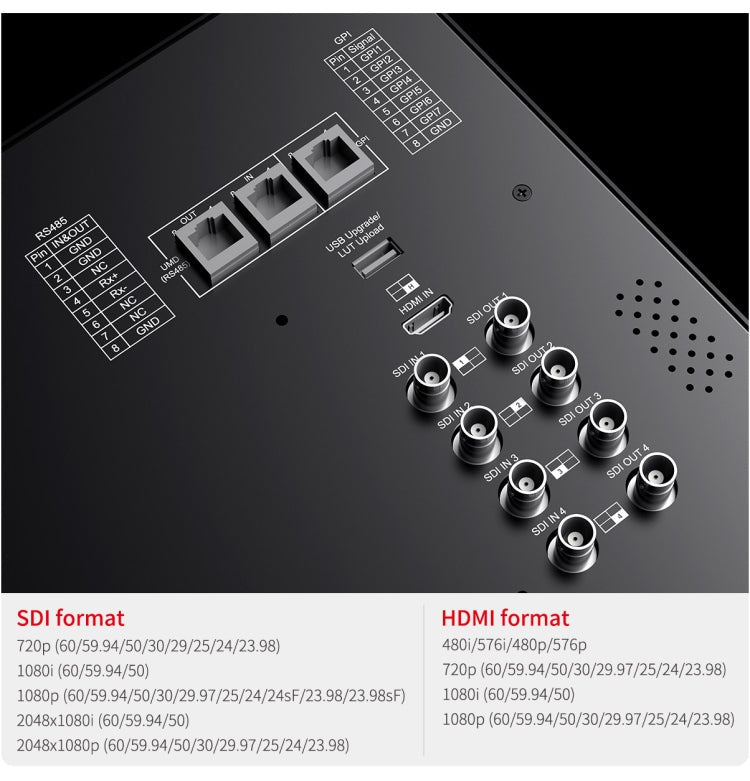

• Input: Features 4 x 3G-SDI, 1 x HDMI, RS485, GPI, and USB inputs, providing extensive connectivity options.
• Output: Equipped with 4 x 3G-SDI and RS485 outputs for seamless connectivity with other devices.
• Audio: Comprehensive audio monitoring with stereo headphone support.

General:

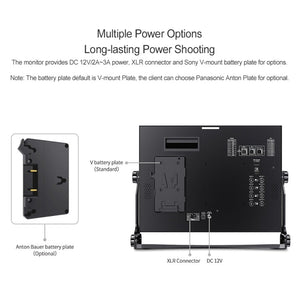

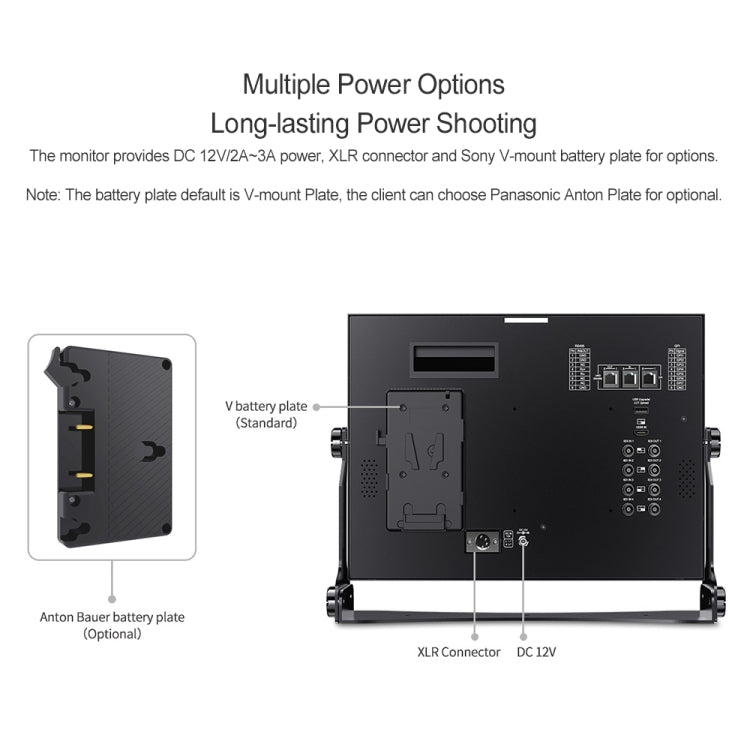

Efficient and reliable with an input voltage of DC 12V and a power consumption of less than or equal to 21W.

Package includes:

• Monitor x 1
• SDI Cable x 1
• Mini HDMI Cable x 1
• V-mount Battery Plate (default to mount on device) x 1
• Sunshade x 1
