Upgrade your network with the RS-232 to RS-485 Data Converter, designed to seamlessly integrate RS485 subsidy equipment with an RS232 mainboard. Experience enhanced control and improved signal integrity for up to 32 devices with ease.

Specifications:

• Concurrently compatible with RS-232C and RS-485 EIA/TIA standards

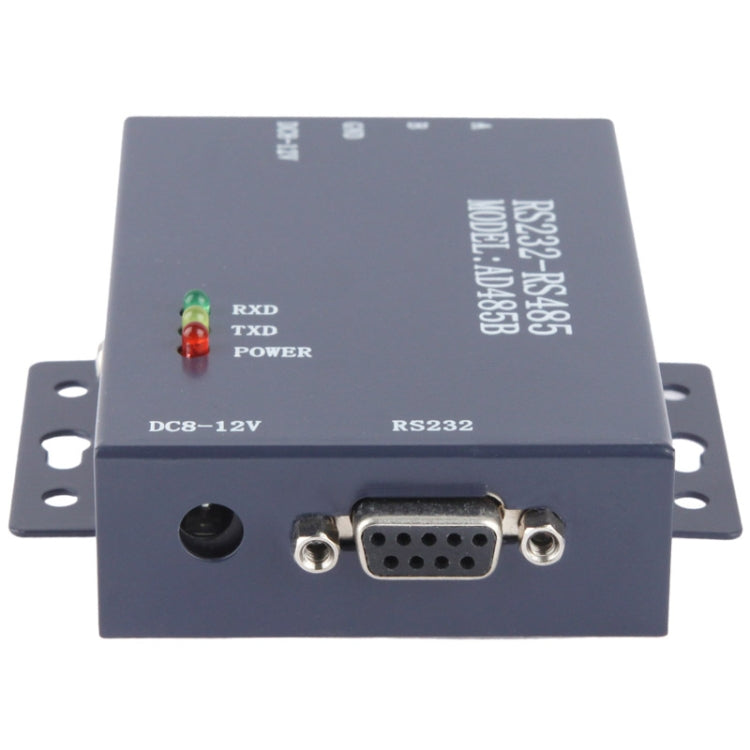

• Electric interface: DB9 hole interface for RS-232 end, DB9 pin connector for RS-485 end
• Work methods: asynchronous half duplex
• Transmission media: common wire, double wire, UTP, or shielding line
• Transmission speed: 300 – 115200 bps
• Transmission distance: 5 meters (RS-232 end), 1200 meters (RS-485 end)
• Telecommunication agreement: transparent
• Work environment: -10 to 85°C, relative humidity: 5% to 95%
• Signals: RS-232 (TXD, RXD, RTS, CTS, DTR, DSR, DCD, CND), RS-485 (Data+, Data-, GND)

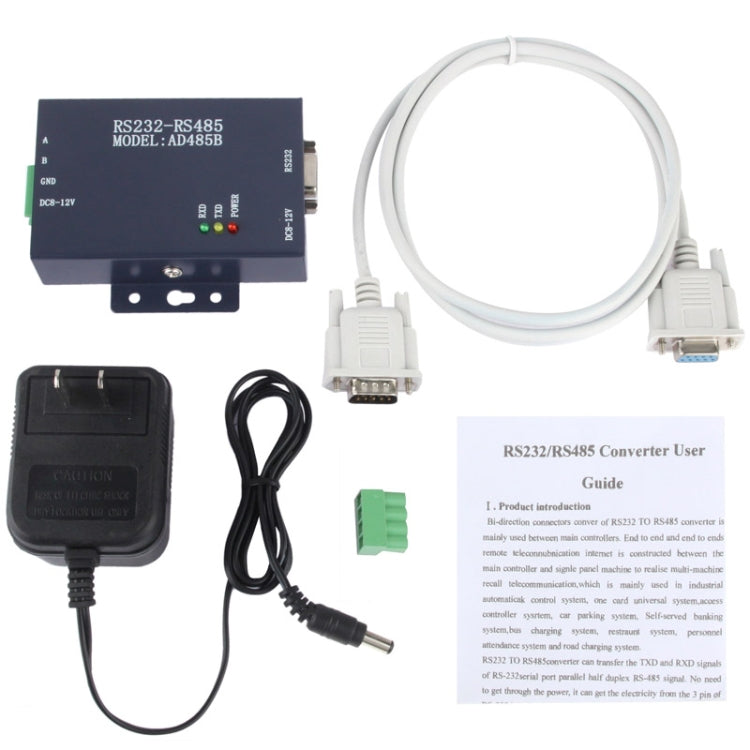

Package Contents:

• 1 x RS-232 to RS-485 Data Converter

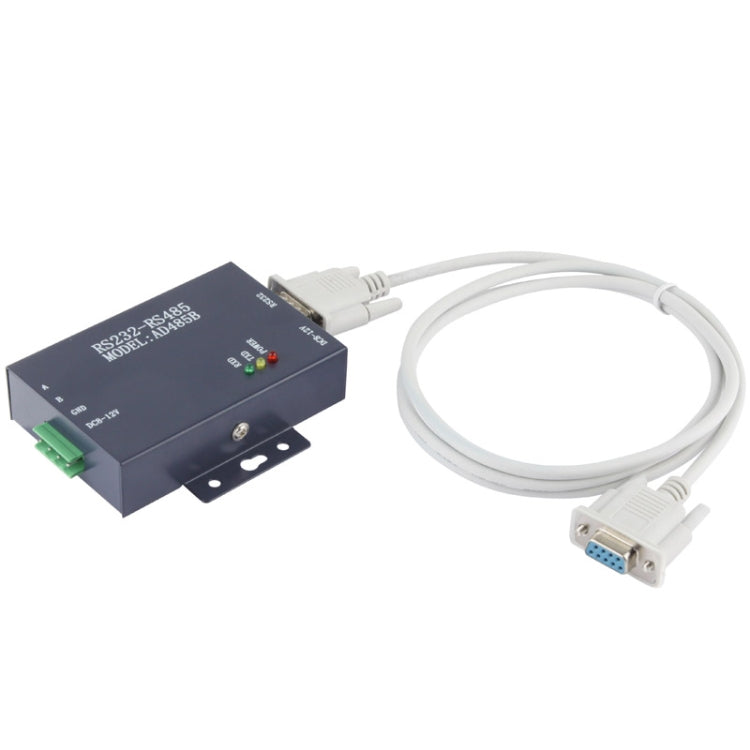

• 1 x 9 Pin Serial D-Connector Cable (Cable length: 135cm)
• 1 x Instruction Manual
