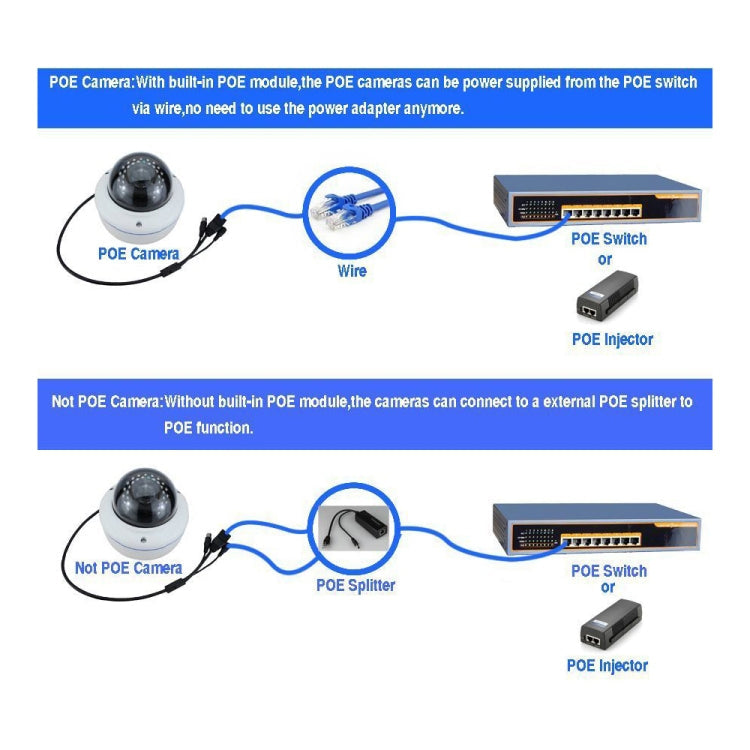

Upgrade your IP camera to a POE camera effortlessly with the Power Over Ethernet Splitter. This PoE splitter adapter is designed to convert a 48V input to a 12V output, making it versatile and adaptable to a variety of small network equipment.

Specifications:

• Power: 15.4W
• Output: 12V
• Input: DC 48V
• Support: 10/100Mbps
• Standard: IEEE 802.3af
• Power in support: 1236 pin

Features:

• Supports IEEE 802.3af Power over Ethernet standard
• 10/100Mbps data transmission support
• Adaptable to a variety of small network equipment with 44V-57V transfer
• Circuit isolation protection for effective electrical equipment protection
• High-quality design for stability and reliability

POE Parameters:

• Maximum Power: 15.4W (IEEE 802.3af)
• Input voltage: 40-57V
• Output voltage: 12V

Connect Port:

• Input: RJ45 interface
• Output: RJ45 connector and DC output interface
• Data transfer rate: 10/100Mbps
• Maximum transmission distance: 100 meters

Network Standards:

• IEEE802.3i 10 BASE-T
• IEEE802.3i 100 BASE-TX
• IEEE802.3x flow control
• IEEE802.3af / IEEE802.3at
