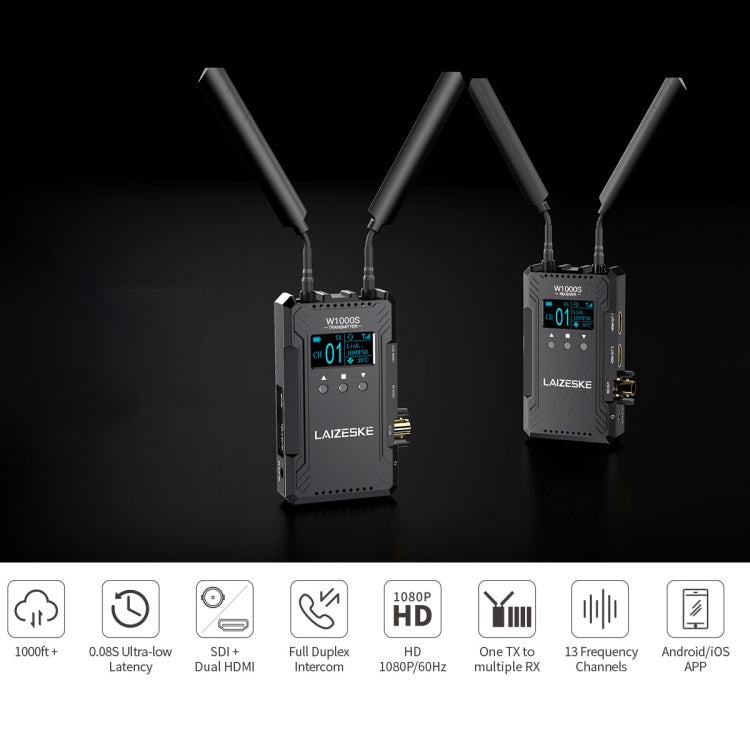

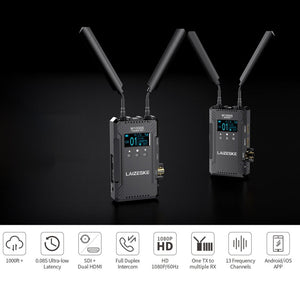

• Dual Signal Interfaces: Equipped with dual HDMI-compatible and SDI signal interfaces to meet diverse needs.

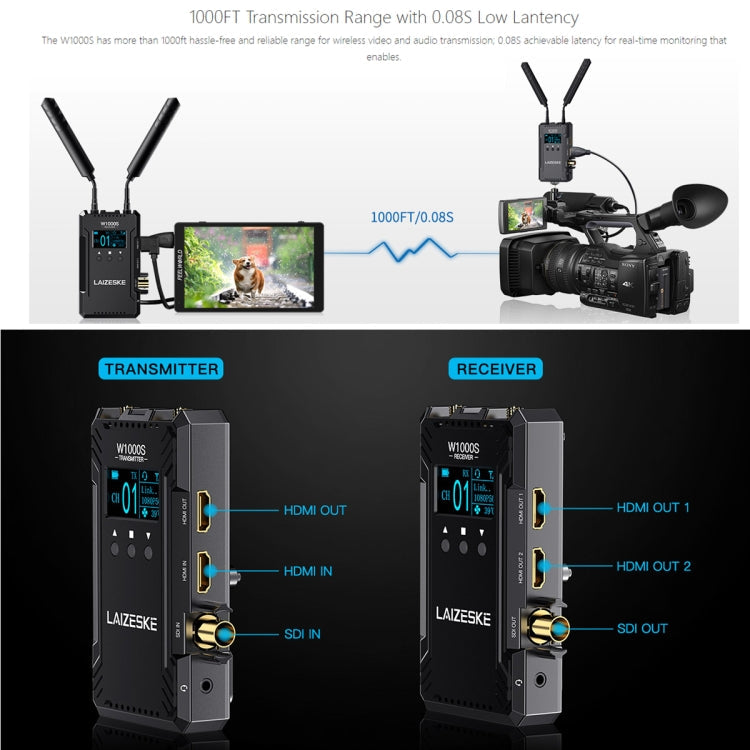

• Extensive Transmission Range: Offers more than 1000ft transmission range with an ultra-low latency of 0.08S.
• High-Quality Image: Capable of delivering up to 1080P at 60Hz, ensuring top-notch image quality.

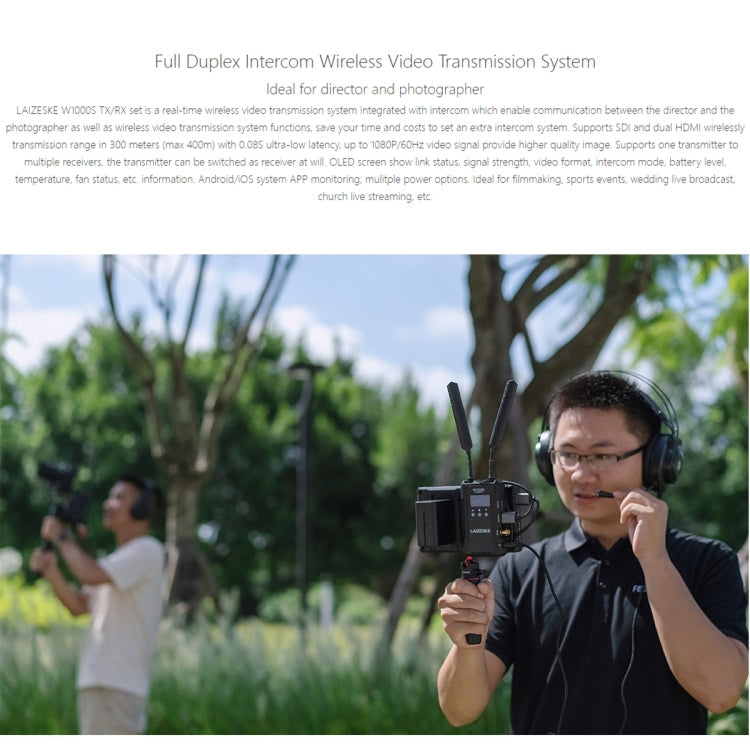

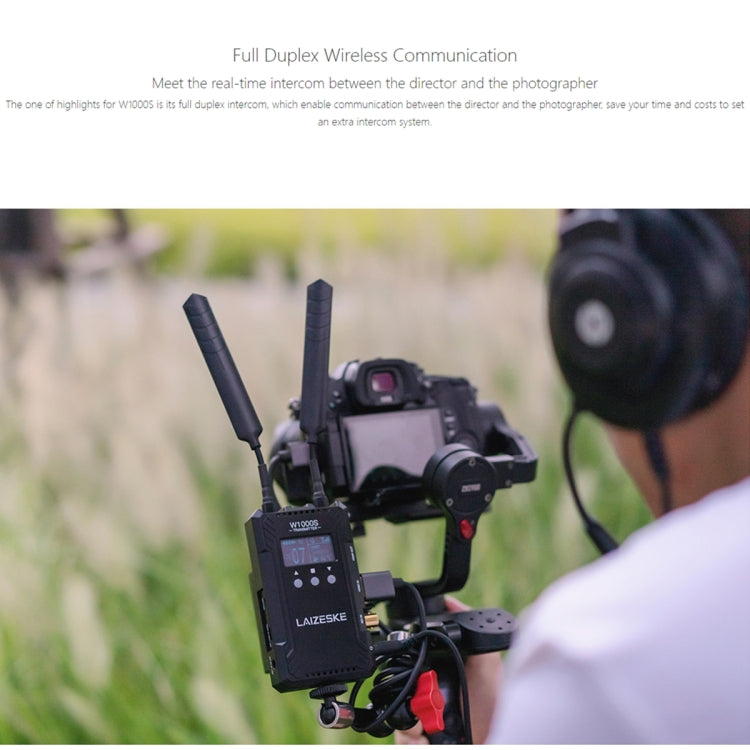

• Wireless Talkback: Enables real-time intercom between the director and photographer, enhancing communication on set.

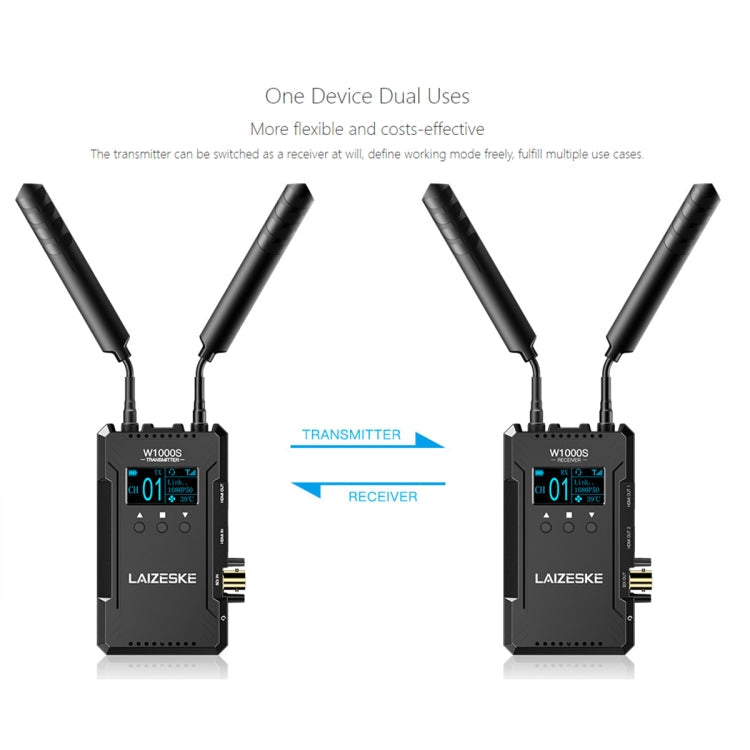

• Flexible Functionality: The transmitter can be easily switched as a receiver, providing versatility in usage.
• Multi-Device Monitoring: Allows for one transmitter to connect to multiple receivers, enabling monitoring for everyone on set.
• Real-Time APP Monitoring: Supports real-time monitoring through an app for Android and iOS systems.
• Auto Channel Scan: Features 13 frequency channels with auto channel scanning for optimal signal reception.

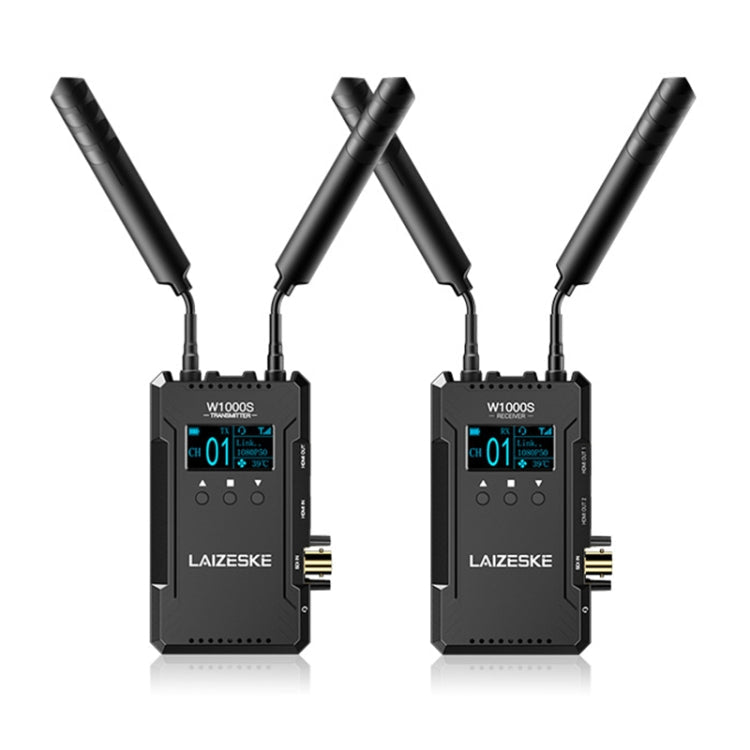

Transmitter Specifications

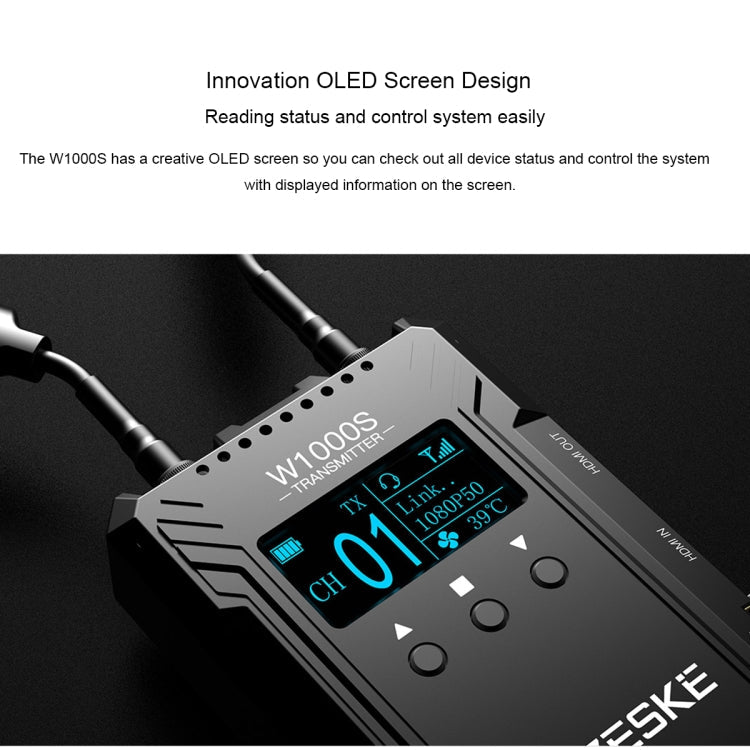

• Screen: OLED

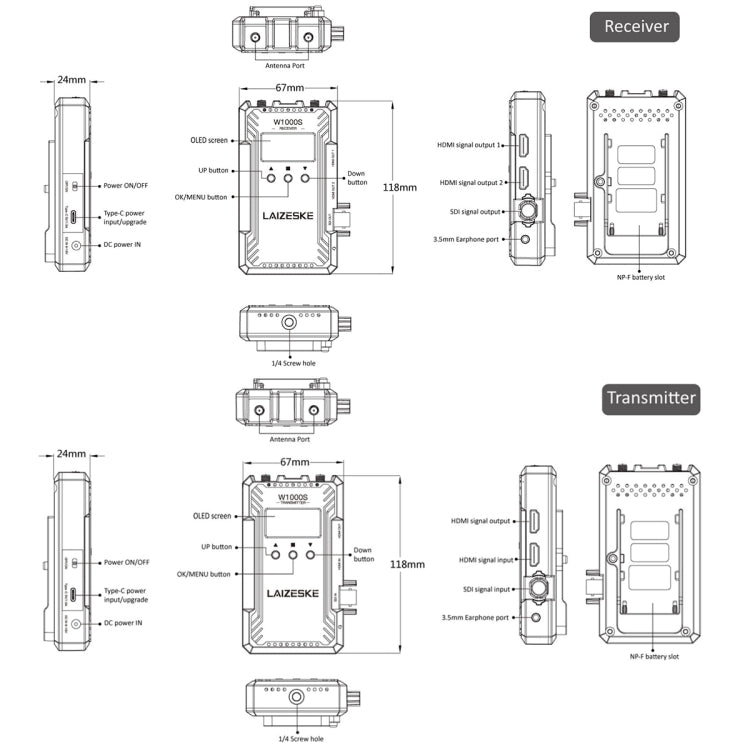

• Interfaces: SDI input, HDMI input, HDMI output, Antenna port (RP-SMA Male) x 2, DC power input, 3.5mm headphone jack, Type-C
• Power Supply Way/Voltage: F970 battery (not included), Type-C: 5V/1.5A, DC adapter: 6-16V
• Power Consumption: Less than 7.5W
• HDMI Format: Various resolutions supported
• SDI Format: Various resolutions supported
• Frequency: 5.1-5.9GHz
• Modulation Mode: OFDM
• Transmission Power: 17dBm
• Band Width: 20MHz
• Occupied Bandwidth: 20/40MHz
• Latency: 0.08S
• Intercom Frequency Response Range: 20Hz~20KHz
• Operating Temperature: 0°C - 40°C
• Storage Temperature: -20°C - 60°C
• Unit Size
