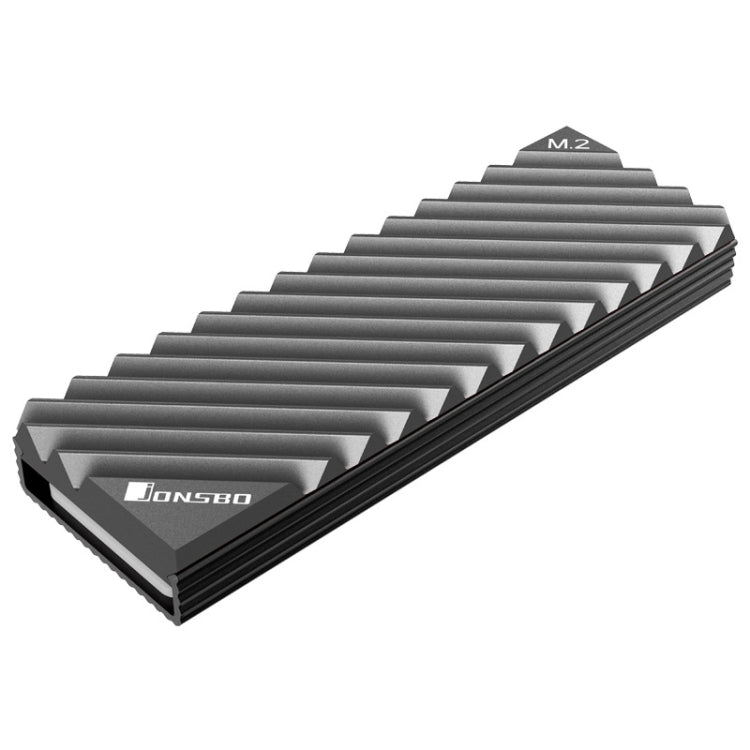

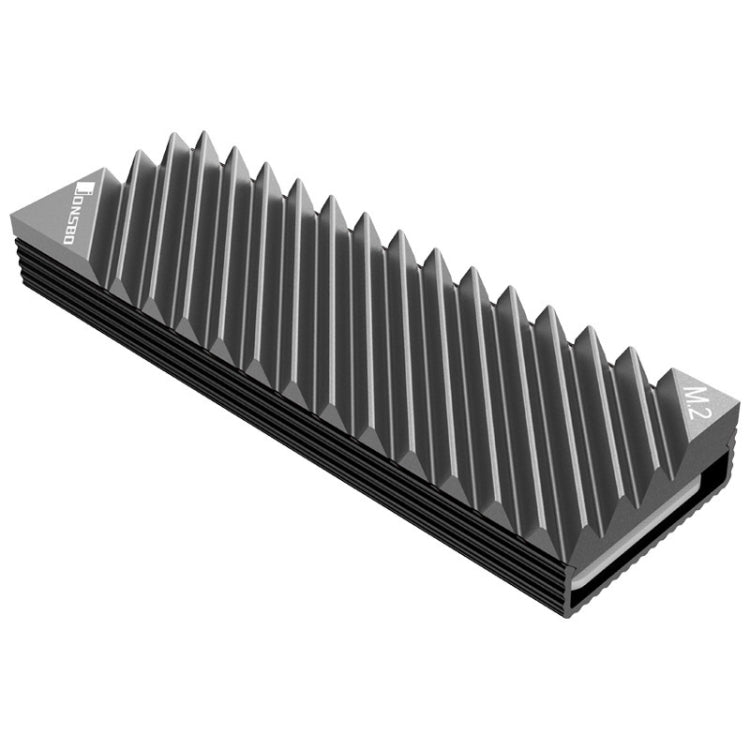

Upgrade your solid state drive's performance with the Jonsbo M.2-3 Solid State Radiator. This sleek grey radiator is designed with high-quality aluminum and features a drainage passive heat dissipation method, ensuring efficient cooling and preventing overheating.

Key Features:

• High-quality thermal silica gel for quick heat conduction
• Suitable for M.2 2280g solid state drives
• Anode sandblasting process for anti-corrosion and anti-rust properties

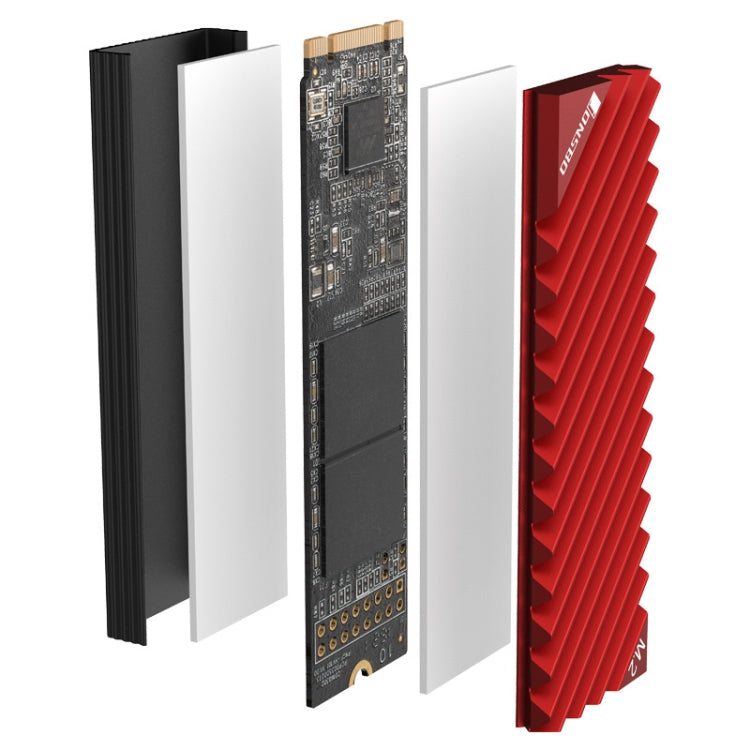

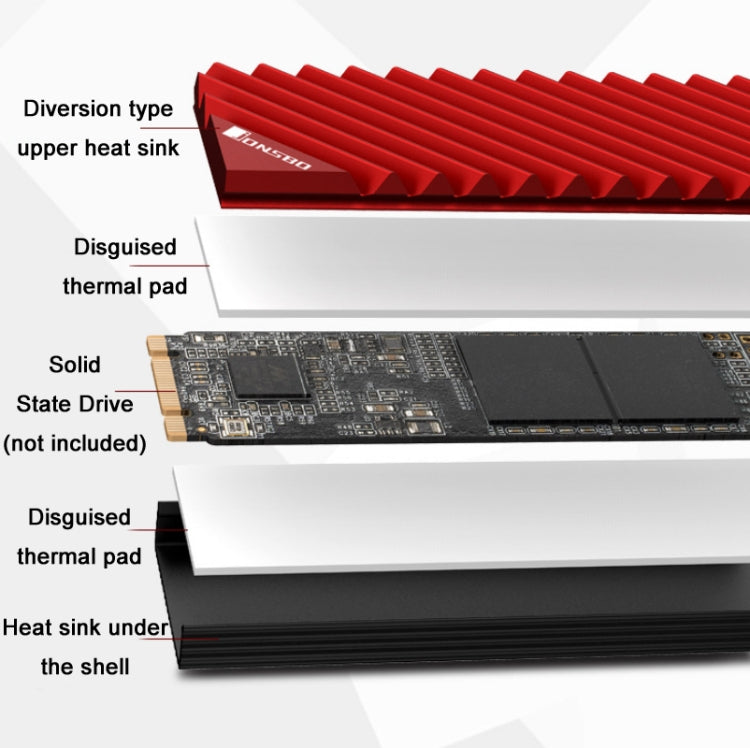

• Diversion type upper heat sink and heat sink under the shell for overall effective heat dissipation
• Striped lines at the bottom to increase heat dissipation area
• Dimensions: 24.4x7.3x6.9 cm; Weight: about 80 grams

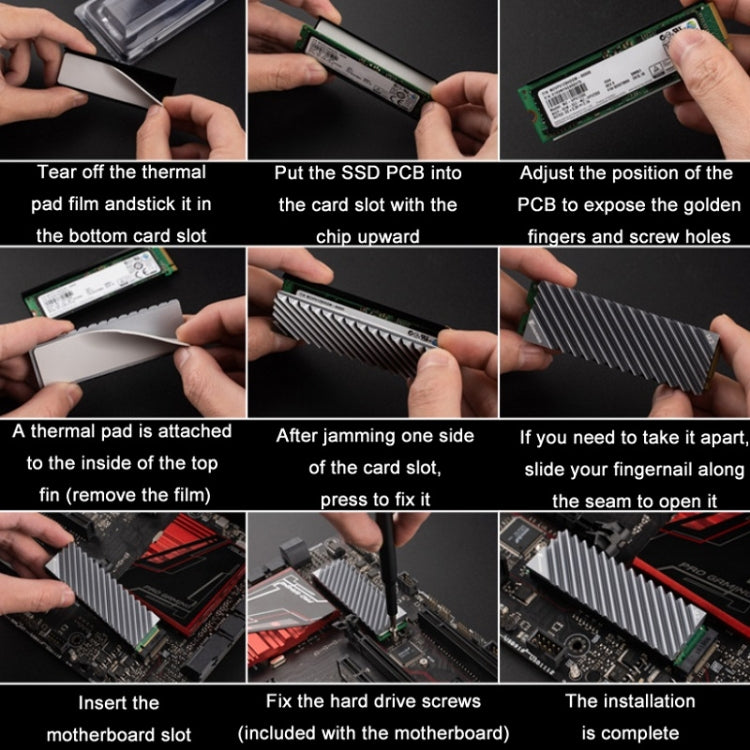

Installation Steps:

1. Tear off the thermal pad film and stick it in the bottom card slot
2. Insert the SSD PCB into the card slot with the chip facing up
3. Adjust the PCB position to reveal the golden fingers and screw holes
4. Stick a thermal pad on the inside of the top fin (tear off the film)
5. Press to fix it after jamming one side of the card slot
6. Slide fingernail along the seam to open for disassembly when needed
7. Insert the motherboard slot and fix the hard drive screws (included with the motherboard)

Enhance your SSD's performance and lifespan with the Jonsbo M.2-3 Solid State Radiator, offering efficient heat dissipation and easy installation.
