Graphics Card Specifications:

• The length of the graphics card is not limited
• Supports 6/8 cards
• 8-card spacing is 75mm

Radiator: CPU radiator height 95mm

Support Power Supply: ATX power supply, extended power supply

Storage Device: SSDx2+HDDx2

Fan Specifications: 12cm fan x5

Sheet Metal Material: Cold rolled sheet

Surface Treatment: Baking varnish

Standard Screws: Hexagonal column x9, motherboard screws x11, hexagonal screws x26 (fixed rack x12, fixed graphics card x8, fixed power supply x4)

Motherboard Size: Support 30.5x24.5 cm

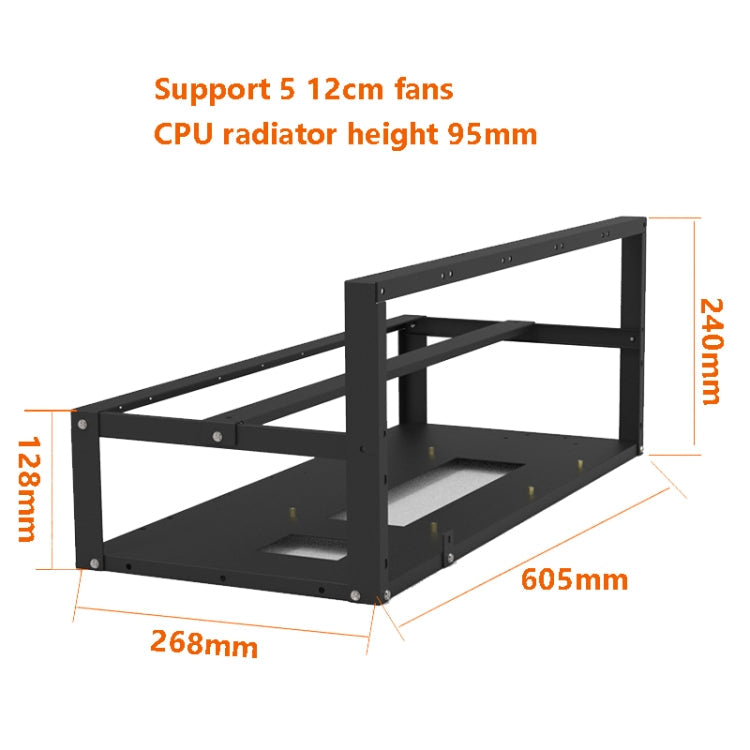

Size: About 60.5x24x26.8cm

Weight: About 2200 grams

Features:

1. Increase the space to facilitate cable management
2. Support ATX motherboard, ATX power supply
3. The heightened size can be installed with a CPU cooler within 95mm
4. Support HDDx2+SSDx2

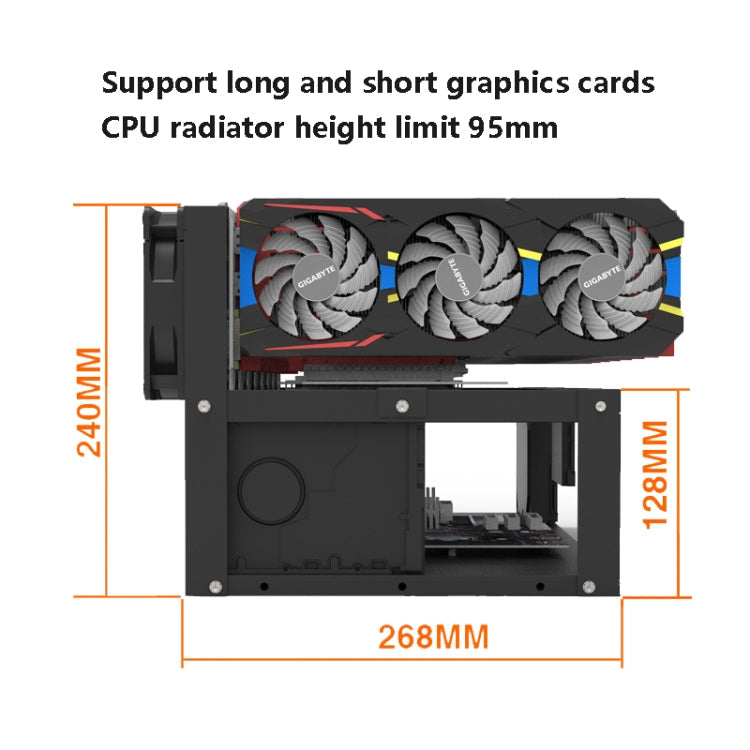

5. Support long and short graphics cards, 8 graphics cards with a spacing of 75mm
6. The fixing frame is all 1.5mm steel plate, and the bottom plate is 0.8mm, which is stable and reliable
7. Thicken the bracket to fix the graphics card more stably, reduce fan resonance, and prevent damage to the device
8. The front supports 5 12cm fans
9. The three fixing frames are made of 1.5mm steel plate, and the bottom plate is 0.8mm
