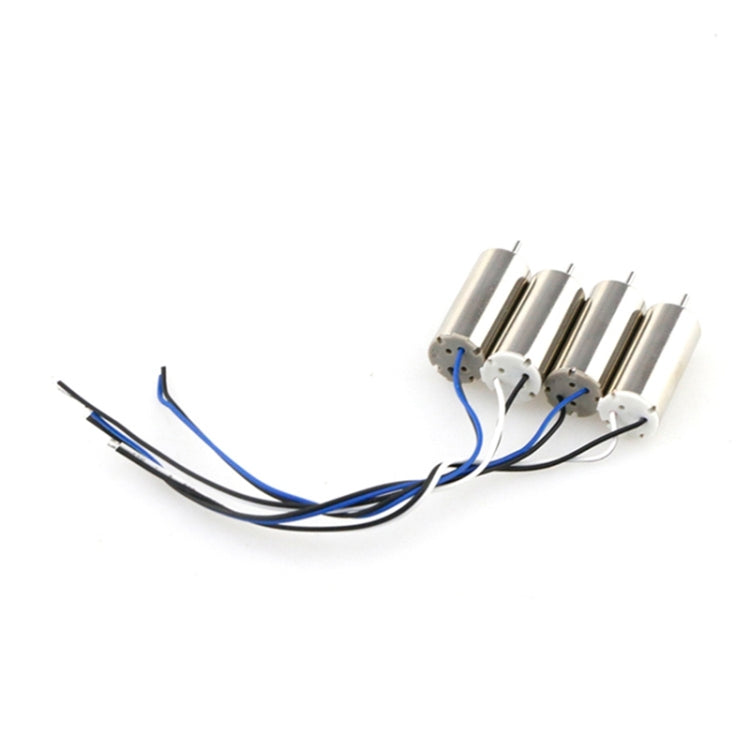

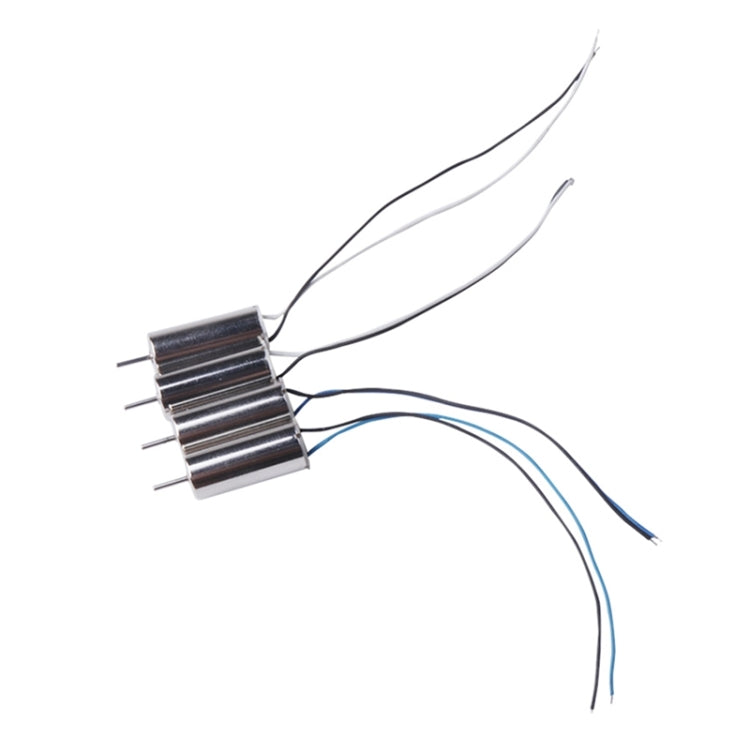

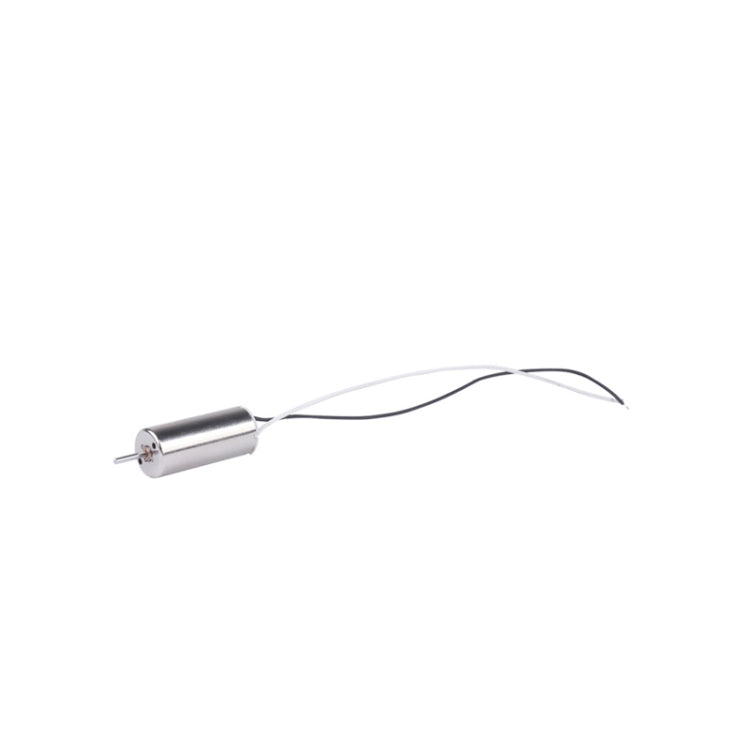

For DJI Tello 8520 Brushed Motor Replacement Repair Part, Colour: M3 (Black White Short Cable)

Replace or repair your DJI Tello 8520 Brushed Motor with this high-quality replacement part. Featuring a sleek black and white design with a short cable, this motor is designed for optimal performance and durability.

  • Voltage: 2.1V DC
  • Operating voltage range: 1.5~4.2V DC

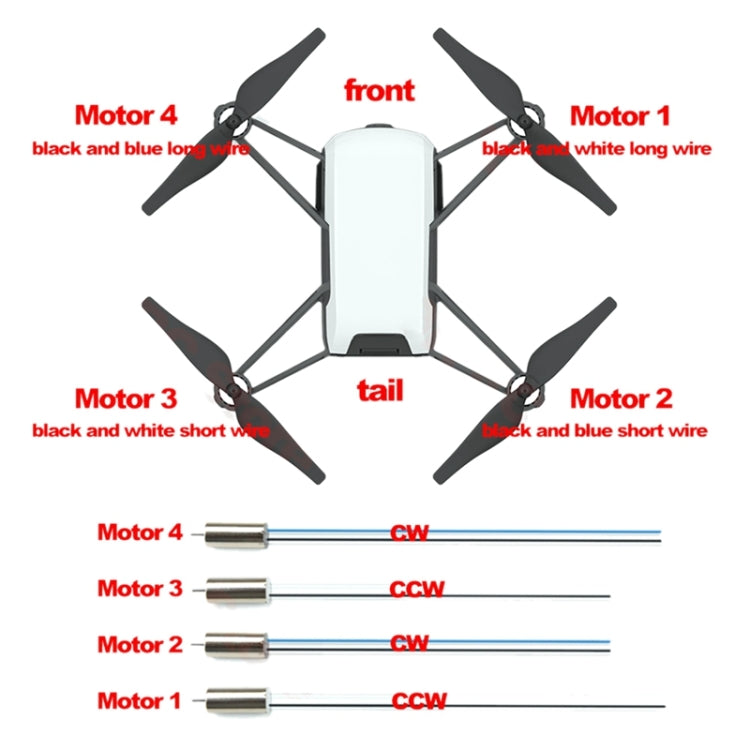

  • Rotation direction: CW/clockwise rotation, CCW/counterclockwise rotation
  • Operating environment: -20-60 degrees Celsius, 10-90%RH
  • Motor position: all directions
  • Weight: about 5.5g
  • Size: 85 x 20MM
  • Cable length: 71mm (rear) 87mm (front)
  • No-load speed: 28000+/-10%RPM
  • No-load current: 200mA (MAX)
  • Load speed: 20500+/-6%RPM (voltage 2.5V passenger blade 76mm-CW)
  • Load current: 2.7+/-0.25A (voltage 2.5V, passenger-supplied blade 76mm-CW)
  • Starting voltage: 0.8VDC (MAX) (rated load, shaft level)
  • Dielectric strength: 5MQ (MIN) (add 100V DC voltage between the wire and the motor body.)

Ensure smooth and reliable motor operation with the DJI Tello 8520 Brushed Motor Replacement. This part is meticulously crafted to meet the highest standards, providing you with a seamless repair or replacement experience.
