Description
  • Voltage: 2.1V DC
  • Operating voltage range: 1.5~4.2V DC
  • Rotation direction: CW/clockwise rotation, CCW/counterclockwise rotation
  • Motor position: all directions
  • Operating environment: -20-60 degrees Celsius, 10-90%RH
  • Temperature: 20+/-2 degrees Celsius
  • Humidity: (65+/-5%)RH
  • Motor status: the output shaft is horizontal (the motor is fixed in the test fixture)
  • Weight: about 5.5g
  • Size: 85 x 20MM
  • Cable length: 71mm (rear) 87mm (front)

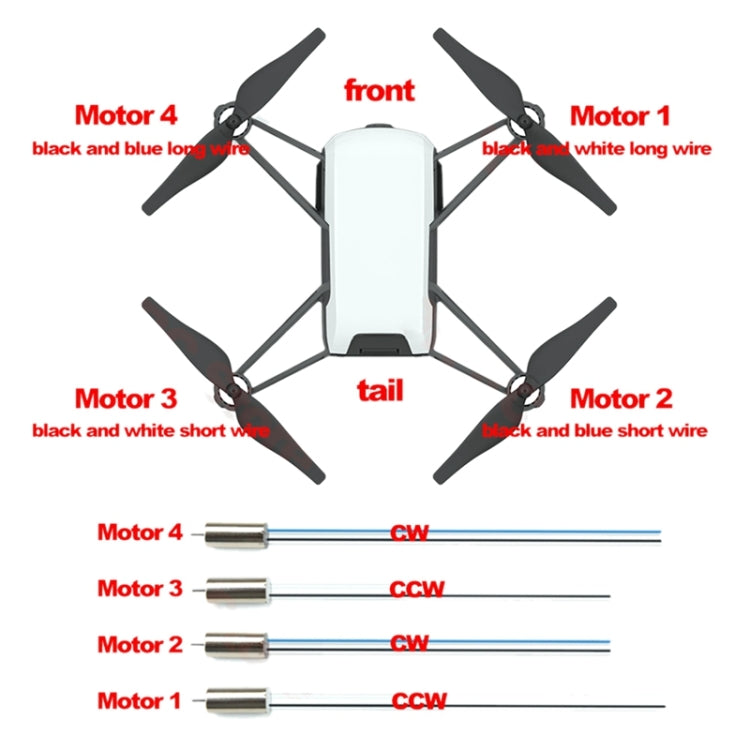

  • Specifications: forward black and blue lines, reverse black and blue lines
  • Axial clearance: 0.05-0.3mm
  • No-load speed: 28000+/-10%RPM
  • No-load current: 200mA (MAX)
  • Load speed: 20500+/-6%RPM (voltage 2.5V passenger blade 76mm-CW)
  • Load current: 2.7+/-0.25A (voltage 2.5V, passenger-supplied blade 76mm-CW)
  • Starting voltage: 0.8VDC (MAX) (rated load, shaft level)
  • Dielectric strength: 5MQ (MIN) (add 100V DC voltage between the wire and the motor body.)
Description
  • Voltage: 2.1V DC
  • Operating voltage range: 1.5~4.2V DC
  • Rotation direction: CW/clockwise rotation, CCW/counterclockwise rotation
  • Motor position: all directions
  • Operating environment: -20-60 degrees Celsius, 10-90%RH
  • Temperature: 20+/-2 degrees Celsius
  • Humidity: (65+/-5%)RH
  • Motor status: the output shaft is horizontal (the motor is fixed in the test fixture)
  • Weight: about 5.5g
  • Size: 85 x 20MM
  • Cable length: 71mm (rear) 87mm (front)
  • Specifications: forward black and blue lines, reverse black and blue lines
  • Axial clearance: 0.05-0.3mm
  • No-load speed: 28000+/-10%RPM
  • No-load current: 200mA (MAX)
  • Load speed: 20500+/-6%RPM (voltage 2.5V passenger blade 76mm-CW)
  • Load current: 2.7+/-0.25A (voltage 2.5V, passenger-supplied blade 76mm-CW)
  • Starting voltage: 0.8VDC (MAX) (rated load, shaft level)
  • Dielectric strength: 5MQ (MIN) (add 100V DC voltage between the wire and the motor body.)
Farigh

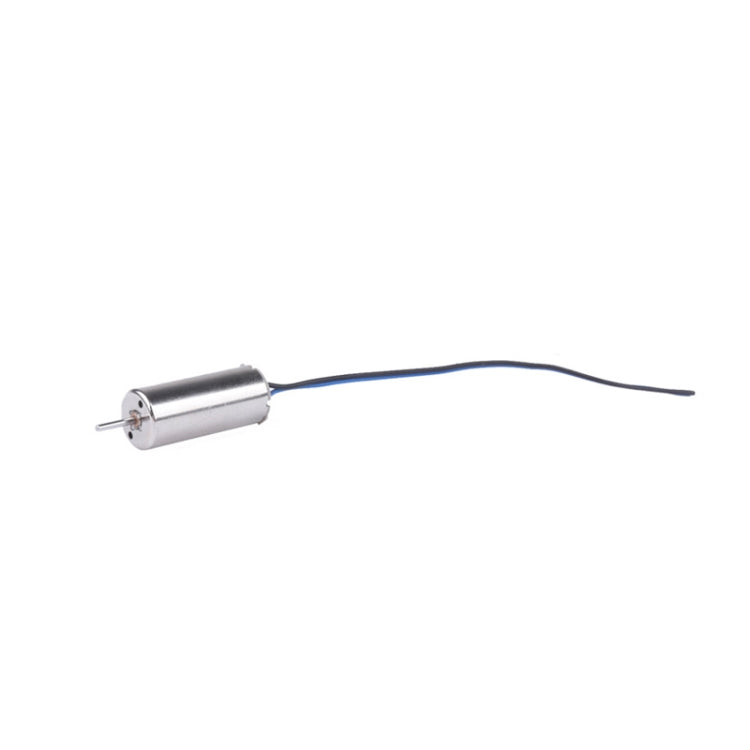

DJI Tello 8520 Brushed Motor Replacement with Black and Blue Short Cable

£12.09
