Take your Arduino projects to the next level with the 4 inch Touch LCD Shield. This shield offers a range of features and functionalities designed to make your development process smoother and more efficient.

Key Features:

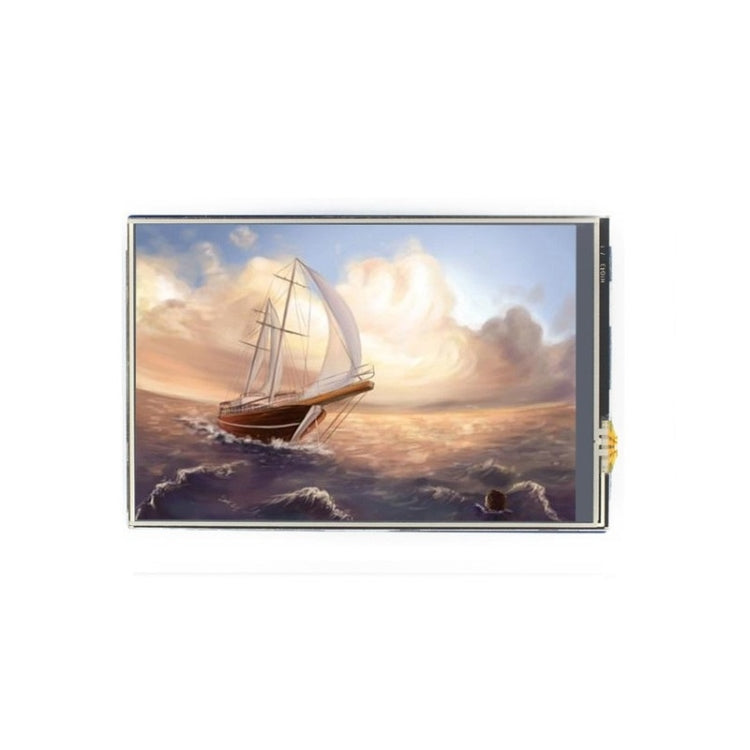

• Resistive Touch Screen: The 4 inch TFT LCD boasts a 480x320 resolution, providing clear and sharp display quality. The resistive touch screen ensures precise and responsive interaction.
• Arduino Compatibility: Compatible with popular development boards such as Arduino UNO, Leonardo, UNO PLUS, NUCLEO, and XNUCLEO, this shield seamlessly integrates into your existing projects.
• Stand-Alone Touch Controller: With an onboard touch controller, this shield offers enhanced touch sensitivity compared to solutions using AD pins directly for touch control.
• PWM Backlight Control: The shield features PWM backlight control, allowing you to adjust the backlight to your preferred level for comfortable viewing.
• Micro SD Slot: Easily store and access photos for display using the convenient micro SD slot.
• Efficient SPI Control: Controlled via SPI, the shield minimizes the usage of Arduino pins, streamlining the integration process.
• Comprehensive Examples: The shield comes with STM32 and Arduino examples, facilitating seamless porting and implementation.

Key Parameters:

• LCD Type: TFT
• LCD Interface: SPI
• LCD Controller: ILI9486
• Touch Screen Type: Resistive
• Touch Screen Controller: XPT2046
• Colors: RGB, 65K colors
• Resolution: 480x320 (Pixel)
• Aspect Ratio: 8:5
• I/O Voltage: 3.3V/5V

For more information, visit the wiki.
