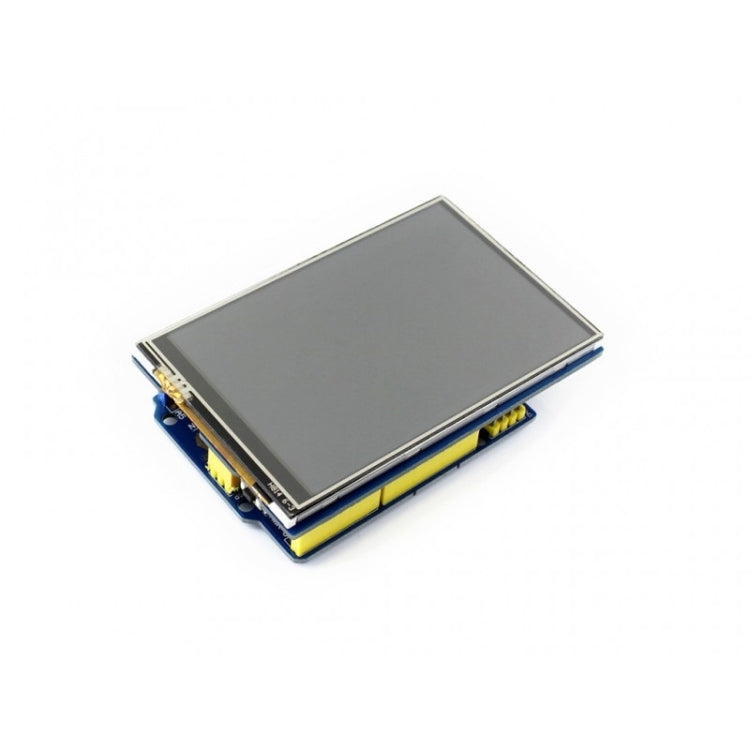

Upgrade your Arduino projects with the 3.5 inch Touch LCD Shield. This shield offers a range of features and functionalities that make it a valuable addition to your development toolkit.

Key Features:

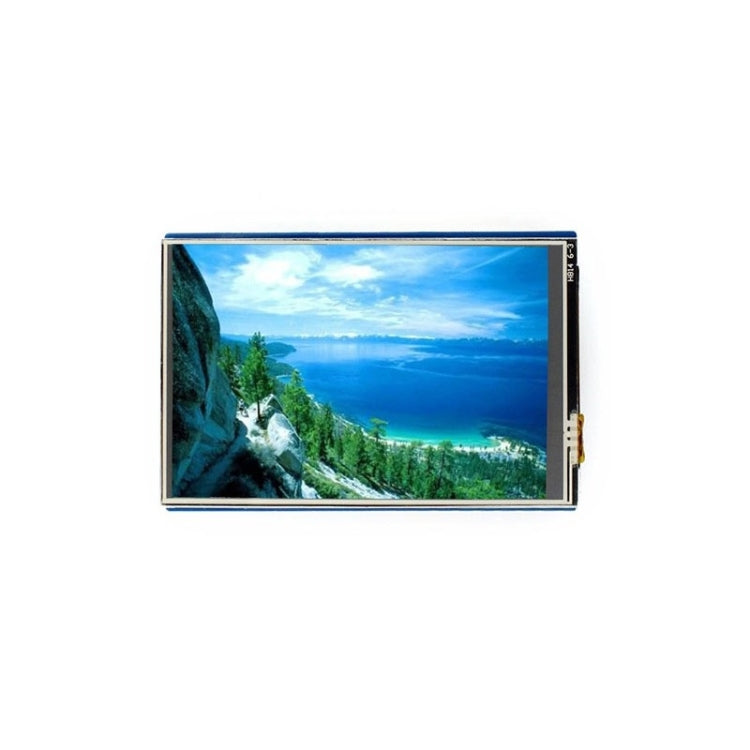

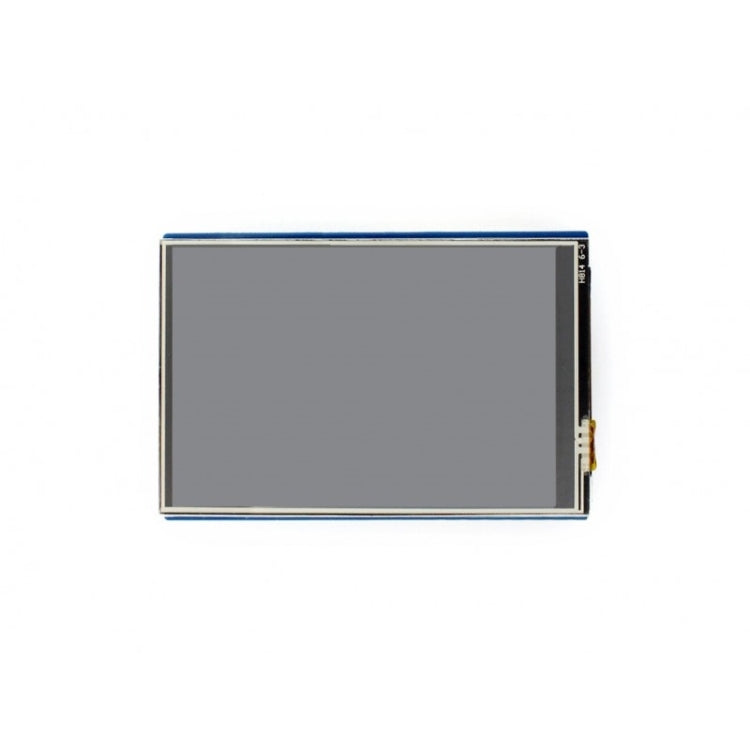

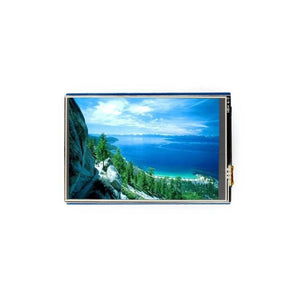

• Resistive touch screen TFT LCD: With a 3.5-inch display and 480x320 resolution, the shield provides a clear and responsive interface for your projects.

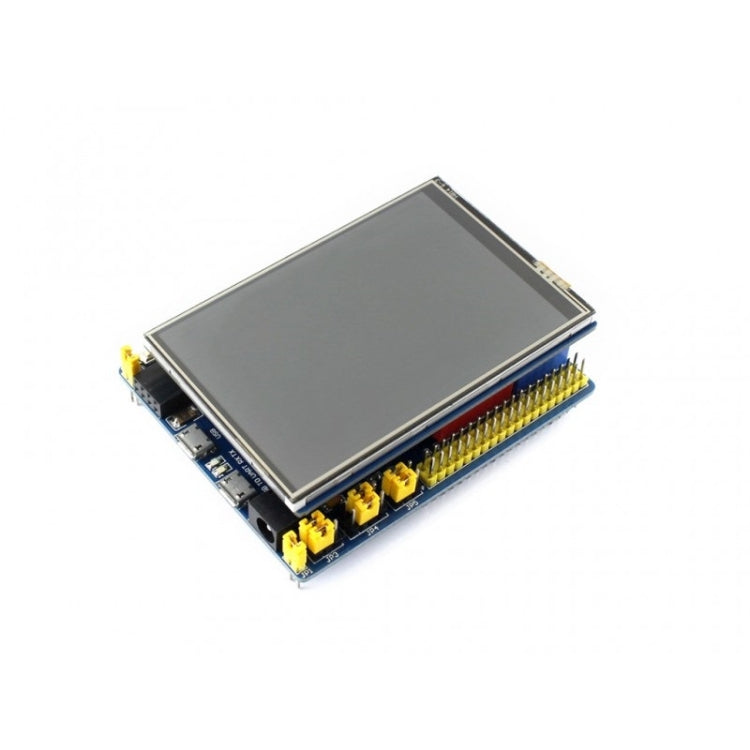

• Compatibility: The shield is designed with a standard Arduino interface, making it compatible with various development boards including Arduino UNO, Leonardo, UNO PLUS, NUCLEO, and XNUCLEO.
• Improved Touch Control: It features an onboard stand-alone touch controller, offering better touch sensitivity compared to solutions that use AD pins directly for touch control.
• Backlight Control: The shield allows for PWM backlight control, enabling you to adjust the backlight to a comfortable level based on your preferences.
• Micro SD Slot: Easily store and display photos with the built-in micro SD slot, adding a visual element to your projects.
• Efficient SPI Control: The shield is controlled via SPI, requiring only a few Arduino pins, thus optimizing the use of resources.
• Comprehensive Examples: It comes with STM32 and Arduino examples, simplifying the porting process and providing convenience for your programming needs.

Key Parameters:

• LCD Type: TFT
• LCD Interface: SPI
• LCD Controller: ILI9486
• Touch Screen Type: Resistive
• Touch Screen Controller: XPT2046
• Colors: RGB, 65K colors
• Resolution: 480x320 pixels
• Aspect Ratio: 8:5
• I/O Voltage: 3.3V/5V

For more information and resources, visit the product wiki.
