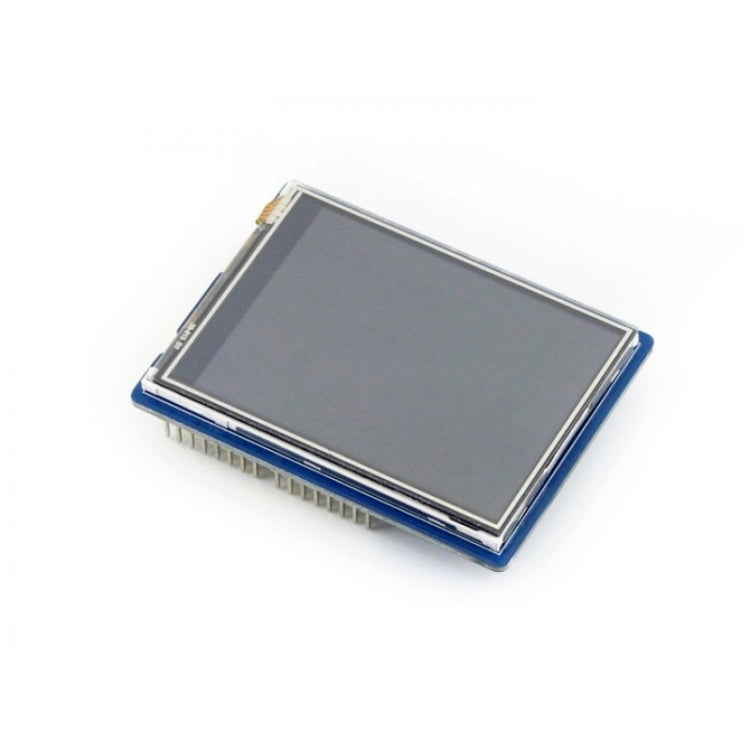

Upgrade your Arduino projects with the 2.8 inch Touch LCD Shield, designed to elevate user interaction and visual display capabilities. With its array of features and seamless compatibility, this shield is a valuable addition to your development toolkit.

Key Features:

• Enhanced Touch Control: Equipped with a resistive touch screen TFT LCD, this shield offers a 320x240 resolution and a stand-alone touch controller for improved touch sensitivity.

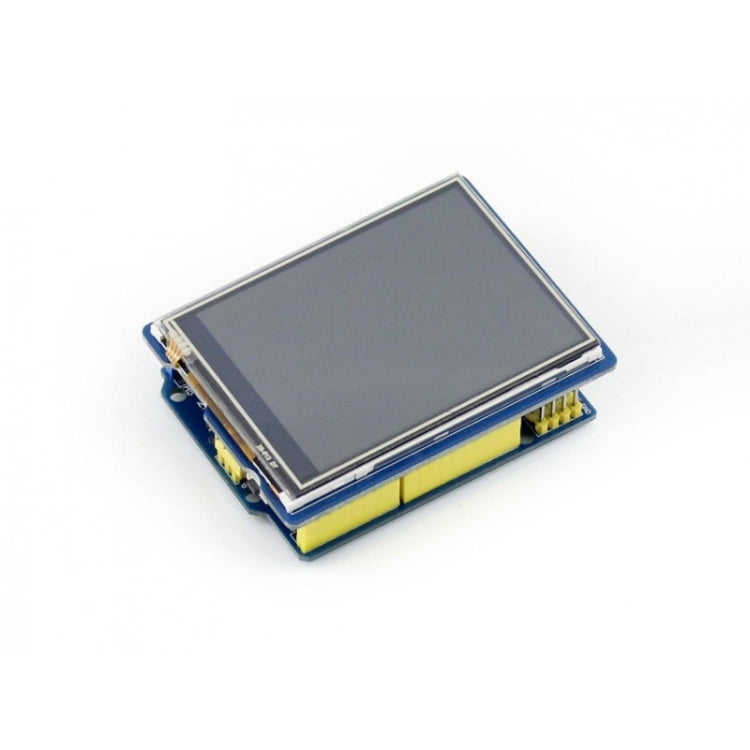

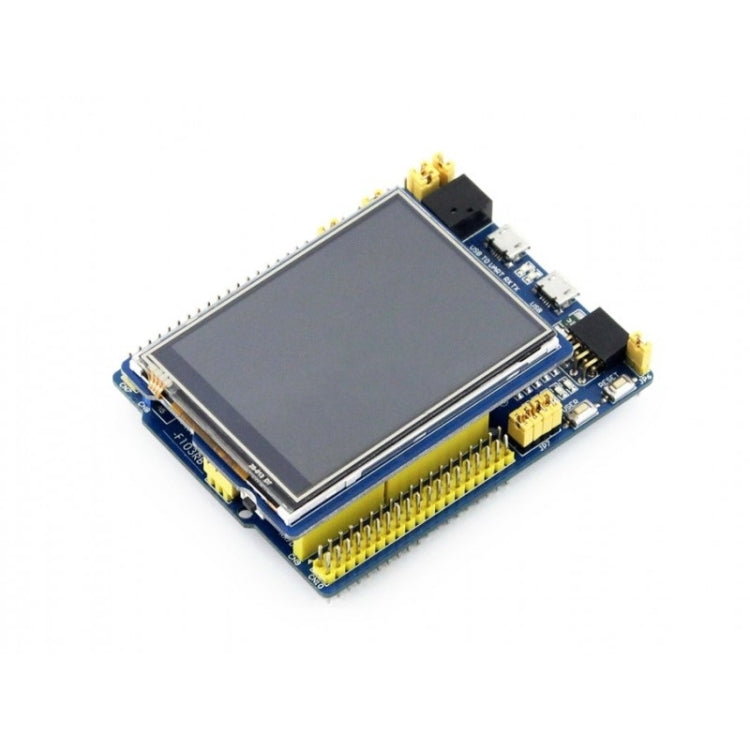

• Wide Compatibility: The standard Arduino interface ensures compatibility with popular development boards such as Arduino UNO, Leonardo, UNO PLUS, NUCLEO, and XNUCLEO.
• Convenient Storage: Make use of the onboard micro SD slot for effortless storage and retrieval of photos to enhance your display capabilities.
• Efficient Interface: Controlled via SPI, this shield optimizes pin usage on your Arduino board, streamlining the integration process.
• Customizable Backlight: Adjust the backlight according to your preferences through programmable settings, while also reducing power consumption.

Key Parameters:

• LCD Type: TFT
• LCD Interface: SPI
• LCD Controller: HX8347D
• Touch Screen Type: Resistive
• Touch Screen Controller: XPT2046
• Colors: RGB, 65K colors
• Resolution: 320x240 (Pixel)
• I/O Voltage: 3.3V/5V

For more information and resources, visit the product wiki.
